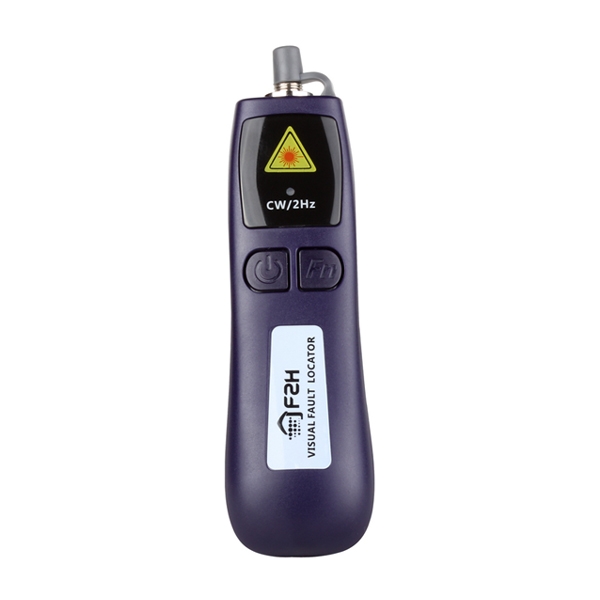

VLS-8 Series Mini Visual Laser Source Visual Fault Locator

VLS-8 Series Mini Visual Laser Source totally complies with the human engineering. It's small in size, easy to operate, portable and integrated with a launching indicator.

Description

A Visual Laser Source is usually used to inspect the damaged or broken point of a optical fiber, cable, patchcord and etc. If the inspected fiber does have a defect, user could find the visual laser at the broken or damaged point. VLS-8 Series Mini Visual Laser Source is suitable for both single mode and multimode fibers. The performance of the visual laser source will act a little different on different fiber coat and color.



Specification

Model

VLS-8-1 VLS-8-10 VLS-8-15 VLS-8-30
Laser Launcher Level? CLASS IIIA CLASS IIIB CLASS IIIB CLASS IIIB
Output Power? ≥1mW ≥10mW ≥15mW ≥30mW
Detecting Range? About 5km About 12Km About 14km About 15km
CW Mode Battery Life? About 13 hours About 6 hours About 5 hours About 3 hours
2Hz Mode Battery Life? About 23 hours About 12 hours About 10 hours About 6 hours
Laser Launcher Type LD
Optical Connector universal 2.5mm adapter (FC/SC/ST)
Output Wavelength  650nm±10nm
Modulation Frequency CW / 2Hz
Power  2*AAA dry batteries
Working Temperature  -10?~+50?; <90%RH
Storage Temperature -20?~+70?; <90%RH
Dimension & Weight L120mm×W33mm×H30mm / about 67.8g
Standard Accessories:
2*AAA batteries, carrying bag, user manual
Optional Accessories:
Male FC to female LC adapter for LC connector (model: HD078)

Features

  1. Totally comply with the human engineering design. Small, portable and durable
  2. Standard multi-adaptor can be applied to connect with almost any adaptor type. Also provides interchangeable fiber adaptors of several common types
  3. Higher output laser power, max 15km detecting range
  4. Integrated with continuous wave and 2Hz modulated wave output function
