RAX721-C Series IP/MPLS Switch
RAX721-C Series are a series of Metro Ethernet Pre-aggregation and Aggregation Switch. Raisecom RAX721-C series are next-generation carrier-class pre-aggregation and aggregation products that provide high performance, high reliability and high densities 1GE, 10GE, 25GE, 40GE and 100GE port types in a compact standard 1U enclosure, flexibly adapting to diversified operator’s network bandwidth requirements.
Description
RAX721-C series working with Raisecom intelligent CPE RAX711 series can deliver high-capacity 1GE/10GE/40GE/100GE diversified metro ethernet pre-aggregation and aggregation. support complete standard CE2.0 E-Line, E-LAN, E-Tree and E-Access services, as well as VPWS, VPLS, H-VPLS, MS-PW, and BGP L3VPN services over MPLS, 6PE, 6VPE over MPLS, EVPN over SR MPLS and EVPN over SRv6 as a PE device. The service delivery can be very flexible and reliable. ZTP and hardware-based CFM and SLA offer service providers an easier way to deploy and manage either devices or services. Various fault detection and protection mechanisms guarantee high availability and stability of services. The whole solution is simply and completely managed on brand new B/S structured RCView system.

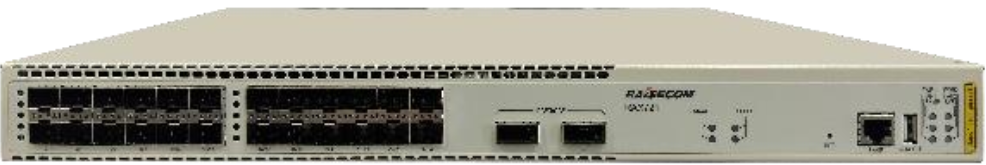

• RAX721-C-2C24 provides 2 x 100G/40G QSFP28/QSFP+ and 24 x 10G/1G/100M SFP+/SFP .
• RAX721-C-4C24 provides 4 x 100G/40G QSFP28/QSFP+ and 24 x 25G/10G/1G SFP28/SFP+/SFP .
• RAX721-C-6C48 provides 6 x 100G/40G QSFP28/QSFP+ , 24 x 25G/10G/1G SFP28/SFP+/SFP and 24 x 10G/1G SFP+/SFP .
Products
|
P/N |
RAX721-C-2C24 |
RAX721-C-4C24 |
RAX721-C-6C48 |
|
Switching capacity |
880Gbps / 800Gbps |
2Tbps / 4.8Tbps |
2.88Tbps / 4.8Tbps |
|
NOTE: device’s switching capability / chip’s switching capability |
|||
|
UNI Interface |
2 x 100G/40G QSFP28/QSFP+ 24 x 10G/1G/100M SFP+/SFP |
4 x 100G/40G QSFP28/QSFP+ 24 x 25G/10G/1G SFP28/SFP+/SFP |
6 x 100G/40G QSFP28/QSFP+ 24 x 25G/10G/1G SFP28/SFP+/SFP 24 x 10G/1G SFP+/SFP |
|
Power Supply |
2 hot-swappable AC/DC power supplies provide 1+1 redundancy AC:220V, 100~240VAC DC: -48V, -36~-72V |
||
|
Operating Temperature |
-5~55°C |
||
|
|
|
||
Features
• Compact hardware design providing high port density in 1U space
• IPv4/IPv6 dual-stack
• MEF CE2.0 complied E-Line, E-LAN, E-Tree, E-Access service with OAM and hardware-based SLA
• Fine-tuned QoS and HCAR
• MPLS VPWS, VPLS, H-VPLS, L3VPN with service status and performance monitoring
• Full IGP/EGP protocol stack, RIP, OSPF, IS-IS and BGP
• Multicast traffic management by IGMP v1/v2/v3, PIM-SM, IGMP snooping and MLD
• Ethernet VPN and Segment Routing for greater network simplicity, agility and scalability*
• High reliability guaranteed by redundant power supplies, dual systems, spanning tree protocol family, LACP, MC-LAG and standard ITU-T G.8031/8032
• Zero-Touch Provisioning
• Management security ensured by AAA and ACL
• User friendly standard SNMP-based GUI management
