L2/L3 Aggregation Switch ISCOM S5600-EI

Description

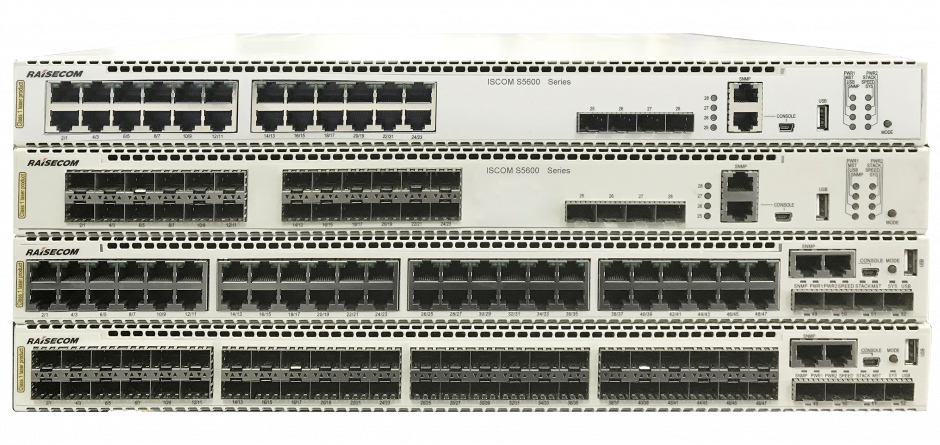

The ISCOM S5600-EI series switches are the new-generation and high-efficiency Layer 2/3 Gigabit Ethernet switches. This series adopt a new-generation switching software platform based on Linux OS and flexible hardware design, such as ISCOM S5600-28C-EI (24x1GE RJ45 + 4x1/10GE SFP+), ISCOM S5600-28C-EI-24F (24x1GE SFP + 4x1/10GE SFP+), ISCOM S5600-52C-EI (48x1GE RJ45 + 4x1/10GE SFP+), ISCOM S5600-52C-EI-48F (48x1GE SFP + 4x1/10GE SFP+), and supporting one slot for extension cards on the rear panel. There are 4 different extension cards to choose from, 8x10GE SFP+, 8x1GE SFP, 8x1GE RJ45 and 2x40GE QSFP+ ports.

The ISCOM S5600-EI series feature high reliability, high security, easy maintenance, simple management. They adopt advanced OAM protocols, meeting the carrier’s requirements for MEF CE2.0 standards to deliver EPL, EVPL, EP-LAN, EVP-LAN and E-Access services. The ISCOM S5600-EI series also support state-of-the-art IPv4/IPv6 unicast/multicast protocols and Intelligent Stacking Framework (ISF) technology.

With these features, they can be widely applied to various networking scenarios. For example, they can function as edge devices on the MAN, aggregation switches on a campus or enterprise network, or gigabit access in the Internet/Enterprise Data Center (IDC/EDC).

Products



Model	ISCOM S5600-28C-EI	ISCOM S5600-28C-EI-24F	ISCOM S5600-52C-EI	ISCOM S5600-52C-EI-48F
Port Number & Type	24x10/100/1000M RJ45 + 4 x 1G/10G SFP+	24x100/1000M SFP + 4 x 1G/10G SFP+	48x10/100/1000M RJ45 + 4 x 1G/10G SFP+	48x100/1000M SFP + 4 x 1G/10G SFP+
Extension Card	One slot for the extension card: 2x40GE QSFP+, 8x10GE SFP+, 8x1GE SFP, 8x1G RJ45
Management interface	1 SNMP interface (RJ45) 2 console interface: 1 RJ45 console and 1 mini-USB console (high priority) 1 USB (reserved, non-function now)
Dimension(mm) (L) x (W) x (H)	1U, 19" (444 x 420 x 44.4)
Device Weight (kg)	5.4kg (no PSU)	5.3kg (no PSU)	5.6kg (no PSU)	5.5kg (no PSU)
Power Supplies Weight(kg)	0.8kg for each PSU
Power Supplies	hot-swappable dual power supplies: dual AC /dual DC/AC+DC also support single power supply: AC/DC
Voltage Scope	AC 220V(100~240V), DC 48V(-36~-72V)
MAX Device Power (Single/Dual Power supplies) (W)	39/43	59/63	51/56	86/90
MAX Card Power (W)	2x40GE QSFP+ card: 14W  8x10G SFP+ card: 16.6W 8x1GE SFP card: 8W  8x1G RJ45 card: 5.3W
FAN Noise	< 60 dBA
Working Temperature	0-50°C
Relevant Humidity	10%–90% RH (non-condensing)
Anti-thunder	cable port anti-thunder CM 6kv power anti-thunder AC: DM 6kv / CM 6kv DC: DM 1kv / DM 2kv
Jumbo Frame	10KB
Buffer	4MB
Memory (SRAM)	1GB
Flash	1GB
Switch Capacity (Gbps)	128 + 160 (with 40G expansion card)		176 + 160 (with 40G expansion card)
Packets Switch Rate (Mpps)	95 + 121 (with 40G expansion card)		131 + 121 (with 40G expansion card)



Features

• High capacity, high density
• High reliability and protection
• ISF Stacking (not compatible with L3 features)
• OAM and SLA
• Various security guarantees
• Fine tunable QoS
• IPv6 Ready
• Advanced management system
  - SNMP, RMON, Telnet, SSH management interface to increase the usability of the device
  - Automatic configuration and loading. The administrator can put the configuration file set in advance to the TFTP server for the automatic loading of the switch while it is booting, thus simplifying the management and maintenance
