The Gazelle R102i/R202i/R202i-VM allows up to 6 Ethernet-based devices to simultaneously use a single cellular data account for primary or backup network connectivity to remote sites and devices. It meets the requirements for SME and outdoor networking deployment scenarios for many industries including finance, environmental protection, transportation, postal, military, meteorology, utility and more.
Description

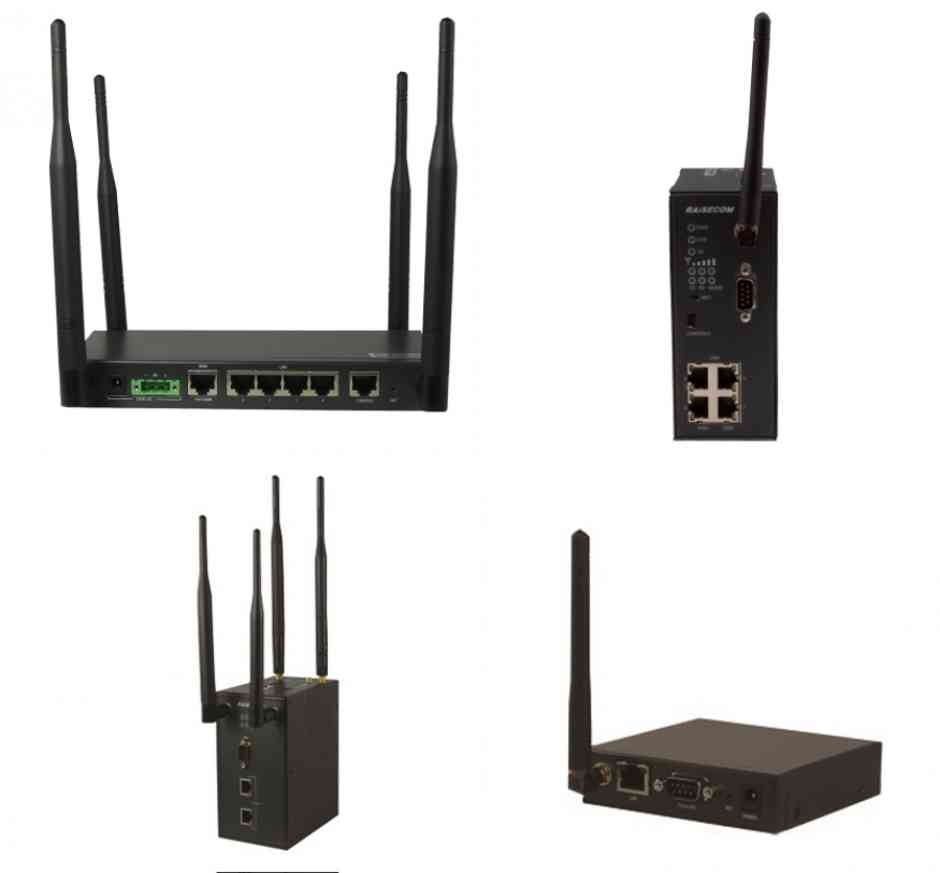

The Raisecom Gazelle R101i/R102i/R202i/R202i-VM series provides solutions that satisfy the requirements for SME and outdoor networking deployment scenarios, such as financial industry, environmental protection, transportation, postal industry, monitoring, military, meteorology, utility and residential areas.
The Gazelle R102i/R202i/R202i-VM allows up to 6 Ethernet-based devices to simultaneously use a single cellular data account for primary or backup network connectivity to remote sites and devices. By integrating routers, switches, firewalls, VPN, and 3G/4G in a single device, the Gazelle series provides the high performance, which is essential for concurrent services. These services include firewall, content filtering, encryption for VPNs, cellular data for mobility, data storage with USB 2.0, and quality-of-service (QoS) features for optimizing voice and video applications at broadband speeds. The use of this device significantly reduces both equipment and management costs.
Features
Features/Device List |
Gazelle R101i |
Gazelle R102i |
Gazelle R202i-VM |
Gazelle R202i |
10/100/1000M Base-TX ports |
N/A |
1 port |
6 ports (2 x SFP+4 x RJ45) |
|
10/100M Base-TX ports |
1 ports |
4 ports |
4 ports |
N/A |
3G Uplink |
WCDMA |
|||
4G Uplink |
N/A |
FDD/TD-LTE compatible (dual 4G modules) |
FDD/TD-LTE compatible (dual SIM cards) |
|
Serial Interfaces |
RS-232/485 serial interface (reuse) |
RS232/485/422 (DB9) |
N/A |
RS232+RS485 (PIN) |
Power Supply |
DC12V |
DC12/24V |
||
Wi-Fi |
N/A |
802.11b/g/n |
||
Security |
IPSec, L2TP GRE VPN, Anti-DoS, Anti-ARP, Anti-Scanning |
|||
Routing |
Static routing |
Static routing, RIP, BGP(VRF) |
||
Function |
NAT NAT/PAT, DHCP and DNS/DDNS |
IGMP Proxy/Snooping, PPPoE, NAT NAT/PAT, DHCP and DNS/DDNS, DMZ function |
||
Temp Range |
-20?C to 70?C |
-25?C to 70?C |
||
IP Level |
IP40
|
|||
Installation |
Wall-mount |
DIN-Rail |
Wall-mount |
DIN-Rail |
Management |
elnet, Web management and SNMP (NView compatible) |
Serial control platform, CLI, Telnet, Web management and SNMP (NView compatible) |
||
MTBF |
>35 Years |
|||
Certification |
IEC61000 compliant |
IEC61850-3 and IEEE1613 compliant |
